Что в программе
- Зачем нужен?
- Как отправить запрос?
- Что делать, когда нет proto файла
- gRPC
Зачем нужен?
- Быстрее
- Меньше
- "Swagger included"
proto file
syntax = "proto2";
option optimize_for = LITE_RUNTIME;
package autofill;
import "password_requirements.proto";
message AutofillUploadContents {
required string client_version = 1;
required fixed64 form_signature = 2;
// The secondary form signature is calculated based on field types instead of
// names and is used if the primary one is unstable, i.e. the field names
// change on every page load. Not used currently.
optional fixed64 secondary_form_signature = 34;
// True if the autofill feature was used to fill this form, false otherwise.
required bool autofill_used = 3;
// A string representing a bit array of what personal information items
// the user has entered in the autofill settings dialog.
// The corresponding bit is set if the user has that particular
// item entered and is not set otherwise.
required string data_present = 4;
// List of the fields in the form and their types.
repeated group Field = 5 {
// Field identification inside the current form.
required fixed32 signature = 6;
// Type of the field, e.g. what type of personal information did the user
// enter in that field before form submission. There is a predefined
// enum of types located at
// components/autofill/core/browser/field_types.h
// AutoFillFieldType
repeated fixed32 autofill_type = 7;
// The value of the name attribute on the field, if present. Otherwise, the
// value of the id attribute. See HTMLFormControlElement::nameForAutofill.
// TODO(850606): Deprecate once randomized metadata is launched.
optional string name = 8;
// The value of the autocomplete attribute on the field, if present.
// TODO(850606): Deprecate once randomized metadata is launched.
optional string autocomplete = 9;
// The type of input control for this field (e.g. text, textarea, email).
// TODO(850606): Deprecate once randomized metadata is launched.
optional string type = 10;
// The field-level metadata associated with this field, randomized.
optional AutofillRandomizedFieldMetadata randomized_field_metadata = 33;
enum PasswordGenerationType {
NO_GENERATION = 0;
AUTOMATICALLY_TRIGGERED_GENERATION_ON_SIGN_UP_FORM = 1;
AUTOMATICALLY_TRIGGERED_GENERATION_ON_CHANGE_PASSWORD_FORM = 2;
MANUALLY_TRIGGERED_GENERATION_ON_SIGN_UP_FORM = 3;
MANUALLY_TRIGGERED_GENERATION_ON_CHANGE_PASSWORD_FORM = 4;
IGNORED_GENERATION_POPUP = 5;
}
// The type of password generation, if it happened.
optional PasswordGenerationType generation_type = 17;
// The value of the class attribute on the field, if present.
// TODO(850606): Deprecate once randomized metadata is launched.
optional string css_classes = 19;
// The properties mask (i.e. whether the field was autofilled, user
// modified, etc.) See FieldPropertiesFlags.
optional uint32 properties_mask = 20;
// The value of the id attribute, if it differs from the name attribute.
// Otherwise, this field is absent.
// TODO(850606): Deprecate once randomized metadata is launched.
optional string id = 21;
// True iff the user changed generated password. If there was no generation,
// the field is absent.
optional bool generated_password_changed = 22;
enum VoteType {
NO_INFORMATION = 0;
// A credential saved on one form (typically a signup form) was used on a
// login form. The vote applies to the first (signup) form.
CREDENTIALS_REUSED = 1;
// When reusing a credential, the username value is not the saved
// username, but another value, which appeared on the form where we saved.
// The correct field is voted for.
USERNAME_OVERWRITTEN = 2;
// In the save prompt, the user corrected the username value to another
// value from the form. The new field is voted for.
USERNAME_EDITED = 3;
// The username field was detected by the base heuristic (take the last
// non-password field before the first password field). The value is not
// used at this point.
BASE_HEURISTIC = 4;
// The username field was detected by HTML-based detector. The value is
// not used at this point.
HTML_CLASSIFIER = 5;
// A saved credential was used for the first time on a submitted form. The
// vote applies to the form being submitted.
FIRST_USE = 6;
}
// The type of password-related vote. If |autofill_type| is not a USERNAME
// or any PASSWORD vote, then the field is absent. This field describes the
// context of the vote.
optional VoteType vote_type = 23;
message AutofillTypeValiditiesPair {
// Type of the field, e.g. what type of personal data the user entered in
// that field before form submission. A list of all data types can be
// found in: components/autofill/core/browser/field_types.h
required int32 type = 1;
// The validity of the type, which is determined based on the validity of
// the user's profile data. A list of all validity states can be found
// here: components/autofill/core/browser/data_model/autofill_data_model.h
// The validity state of a type is used to experiment if only using valid
// data would result in better predictions.
// TODO(crbug.com/1174203): Remove the validity.
repeated int32 validity = 2;
}
// A list of possible types for the field with their corresponding validity
// states based on the user's data.
repeated AutofillTypeValiditiesPair autofill_type_validities = 35;
// A low-entropy hash of the field's initial value before user-interactions
// or automatic fillings. This field is used to detect static
// placeholders.
optional uint32 initial_value_hash = 40;
}
// Signature of the form action host (e.g. Hash64Bit("example.com")).
optional fixed64 action_signature = 13;
// Signature of the form. This is currently used when password generated on a
// password field of a registration form is used on a password field of a
// login form.
optional fixed64 login_form_signature = 14;
// Whether a form submission event was observed.
optional bool submission = 15;
// The form name.
optional string form_name = 16;
// True if the non-obfuscated password values were shown to the user.
optional bool passwords_revealed = 24;
// The section of noisified data about password.
// Upload only one of character class attributes (|password_has_*|). Noisified
// length is always uploaded.
// Upload only when a password is saved.
// Used to adjust the password generator's settings to site's requirements.
// Whether the password has any lowercase letter.
optional bool password_has_lowercase_letter = 25;
// Deprecated since M80: Whether the password has any uppercase letter.
optional bool password_has_uppercase_letter = 26 [deprecated = true];
// Deprecated since M80: Whether the password has any digit.
optional bool password_has_numeric = 27 [deprecated = true];
// Whether the password has any special symbol.
optional bool password_has_special_symbol = 28;
// Noisified password length.
optional uint32 password_length = 29;
// If |password_has_special_symbol| is true, this field contains noisified
// information about a special symbol used in a user-created password stored
// in ASCII code.
// Otherwise, this field is unset.
optional uint32 password_special_symbol = 39;
// The end of the section of password attributes.
// Event observed by the password manager which indicated that the form was
// successfully submitted. Corresponds to |mojom::SubmissionIndicatorEvent|.
enum SubmissionIndicatorEvent {
NONE = 0;
HTML_FORM_SUBMISSION = 1;
SAME_DOCUMENT_NAVIGATION = 2;
XHR_SUCCEEDED = 3;
FRAME_DETACHED = 4;
DEPRECATED_MANUAL_SAVE = 5; // obsolete
DOM_MUTATION_AFTER_XHR = 6;
PROVISIONALLY_SAVED_FORM_ON_START_PROVISIONAL_LOAD = 7;
DEPRECATED_FILLED_FORM_ON_START_PROVISIONAL_LOAD = 8; // unused
DEPRECATED_FILLED_INPUT_ELEMENTS_ON_START_PROVISIONAL_LOAD = 9; // unused
PROBABLE_FORM_SUBMISSION = 10;
CHANGE_PASSWORD_FORM_CLEARED = 11;
}
// The type of the event that was taken as an indication that the form has
// been successfully submitted.
optional SubmissionIndicatorEvent submission_event = 30;
// The language of the page on which this form appears.
optional string language = 31;
// Form-level metadata observed by the client, randomized.
optional AutofillRandomizedFormMetadata randomized_form_metadata = 32;
// Information about a button's title (sync with another ButtonTitle in this
// proto).
message ButtonTitle {
// Text showed on the button.
optional string title = 1;
// Describes how the button is implemented in HTML source.
optional ButtonTitleType type = 2;
}
// Titles of form's buttons.
// TODO(850606): Deprecate once randomized metadata is launched.
repeated ButtonTitle button_title = 36;
// Whether the fields are enclosed by a <form> tag or are unowned elements.
optional bool has_form_tag = 37;
// Captures whether or not this upload was a candidate for throttling.
optional bool was_throttleable = 38;
}

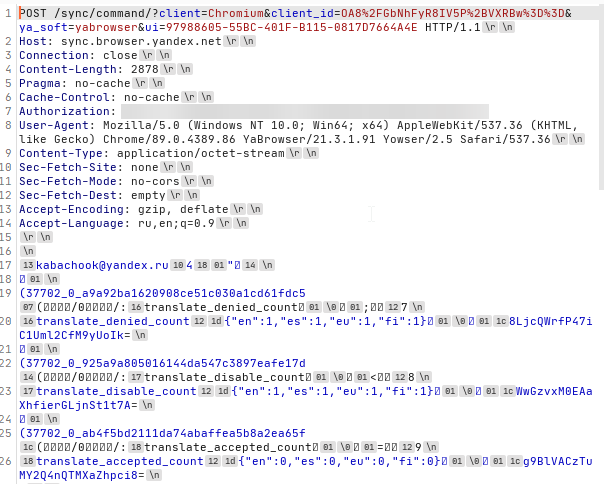

Как это выглядит на самом деле

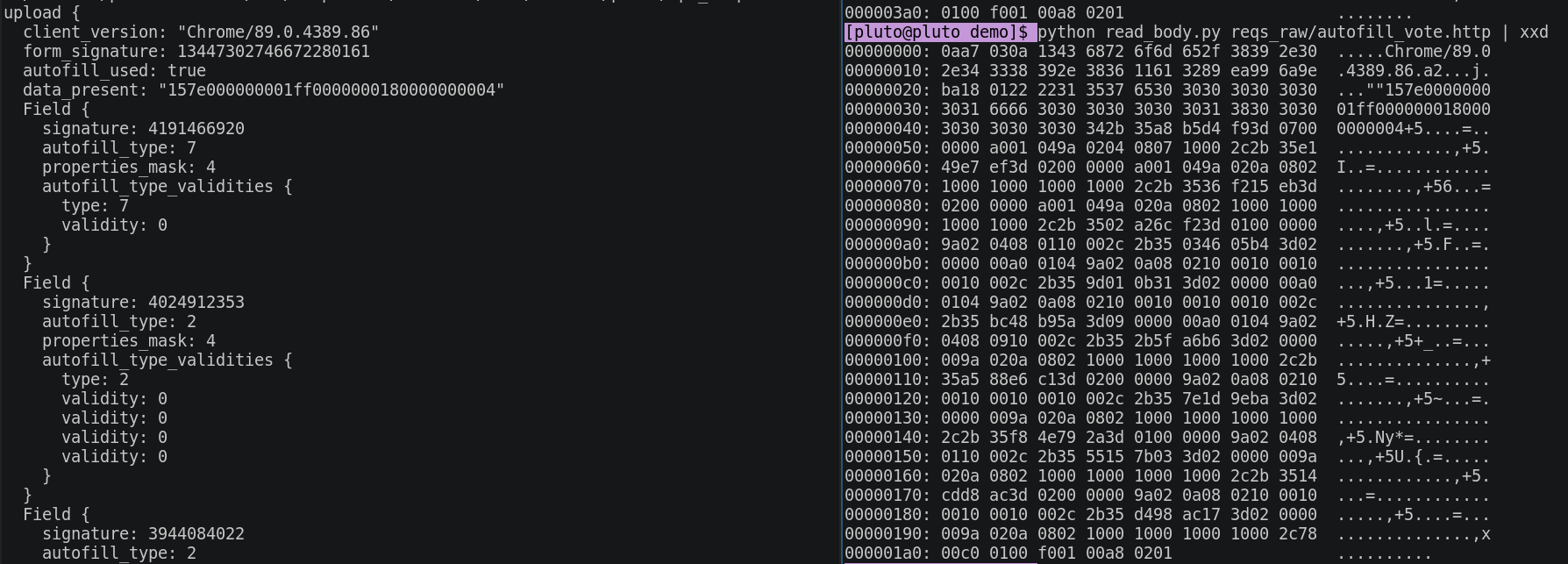

Раскукоженный пример
Погружаемся
0a => 1 010 => id=1, type=length-delimited
id type
a703 => 1 010 0111| 000 0011 => 423 = length
msb
=> 000 0011 ++ 010 0111 = 1 + 2 + 4 + 32 + 128 + 256
0a13 => length-delimited, id=1, size=0x13=19
4368726f6d652f38392e302e343338392e3836 => "Chrome/89.0.4389.86"
11 => 00010 001 => id=2, type=64bit
61 32 89 EA 99 6A 9E BA => 13447302746672280161
Как отправить запрос, когда есть proto файл?
- Пишем text-formated сообщение
days: 20
ticker: "USDRUB"
-
protoc --encode=demo.CurrencyRequest proto/currency.proto < currency_req.txt
- Переводим в base64 и вставляем в Burp🥲
days: 20
ticker: "USDRUB"
protoc --encode=demo.CurrencyRequest proto/currency.proto < currency_req.txtКак раздекодить запрос, когда есть proto файл?
protoc --decode=demo.CurrencyRequest proto/currency.proto < currency_req.http
Как составить запрос, когда нет proto файла?
Точно так же, только вместо названия ключей их номер
1: 20
2: "USDRUB"
⬇️
import blackboxprotobuf
print(blackboxprotobuf.encode_message({
1: 20,
2: "USDRUB"
}, {
'1': {'type': 'int', 'name': ''},
'2': {'type': 'bytes', 'name': ''},
}))

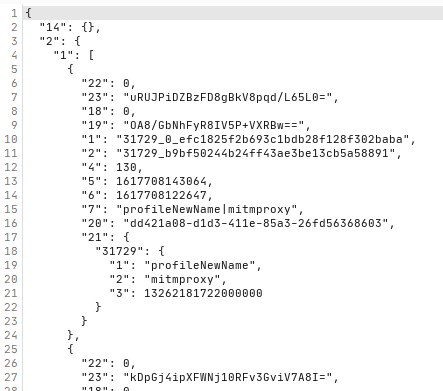

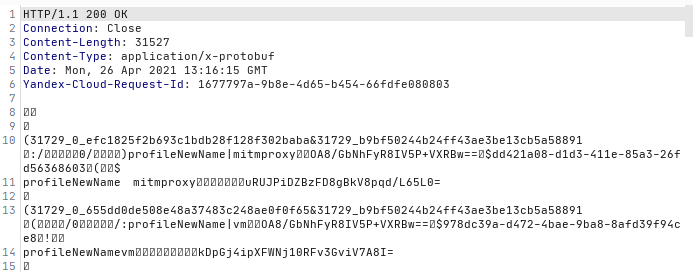

bytearray(b'\x08\x14\x12\x06USDRUB')Как раздекодить запрос, когда нет proto файла?
protoc --decode_raw < currency_req.http
Шо там по бюрпу?
gRPC
syntax = "proto3";
package yandex.cloud.compute.v1;
service InstanceService {
// Returns the specified Instance resource.
//
// To get the list of available Instance resources, make a [List] request.
rpc Get (GetInstanceRequest) returns (Instance) {
option (google.api.http) = { get: "/compute/v1/instances/{instance_id}" };
}
...
}

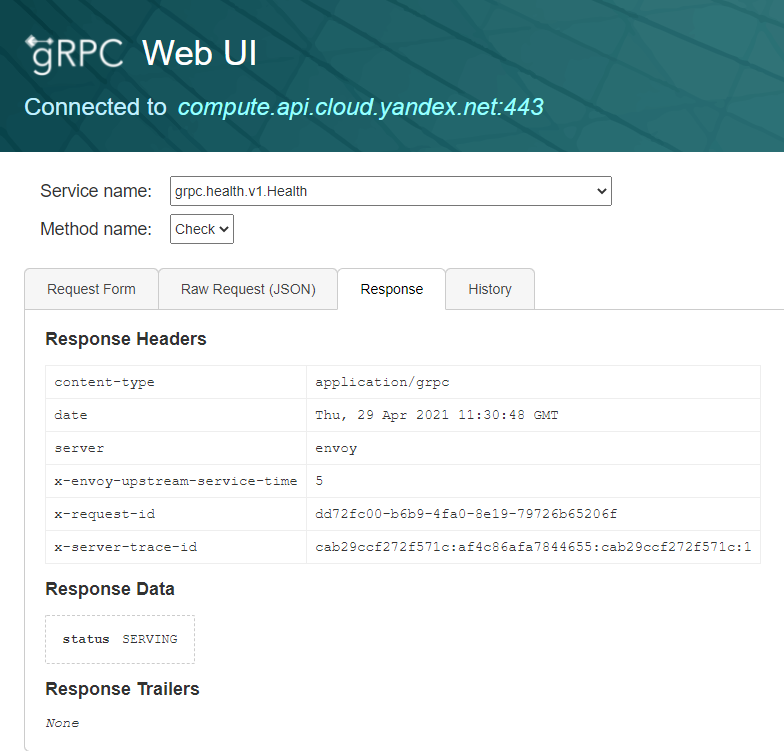

Что делать, если нет proto файла?
service ServerReflection {
// The reflection service is structured as a bidirectional stream, ensuring
// all related requests go to a single server.
rpc ServerReflectionInfo(stream ServerReflectionRequest)
returns (stream ServerReflectionResponse);
}
message ServerReflectionRequest {
string host = 1;
// To use reflection service, the client should set one of the following
// fields in message_request. The server distinguishes requests by their
// defined field and then handles them using corresponding methods.
oneof message_request {
// Find a proto file by the file name.
string file_by_filename = 3;
// Find the proto file that declares the given fully-qualified symbol name.
// This field should be a fully-qualified symbol name
// (e.g. .[.] or .).
string file_containing_symbol = 4;
// Find the proto file which defines an extension extending the given
// message type with the given field number.
ExtensionRequest file_containing_extension = 5;
// Finds the tag numbers used by all known extensions of the given message
// type, and appends them to ExtensionNumberResponse in an undefined order.
// Its corresponding method is best-effort: it's not guaranteed that the
// reflection service will implement this method, and it's not guaranteed
// that this method will provide all extensions. Returns
// StatusCode::UNIMPLEMENTED if it's not implemented.
// This field should be a fully-qualified type name. The format is
// .
string all_extension_numbers_of_type = 6;
// List the full names of registered services. The content will not be
// checked.
string list_services = 7;
}
}
grpcurl
GitHub↗️
grpcurl -d '...' compute.api.cloud.yandex.net:443 yandex.cloud.compute.v1.InstanceService.List
grpcurl compute.api.cloud.yandex.net:443 list
grpcui
GitHub↗️
